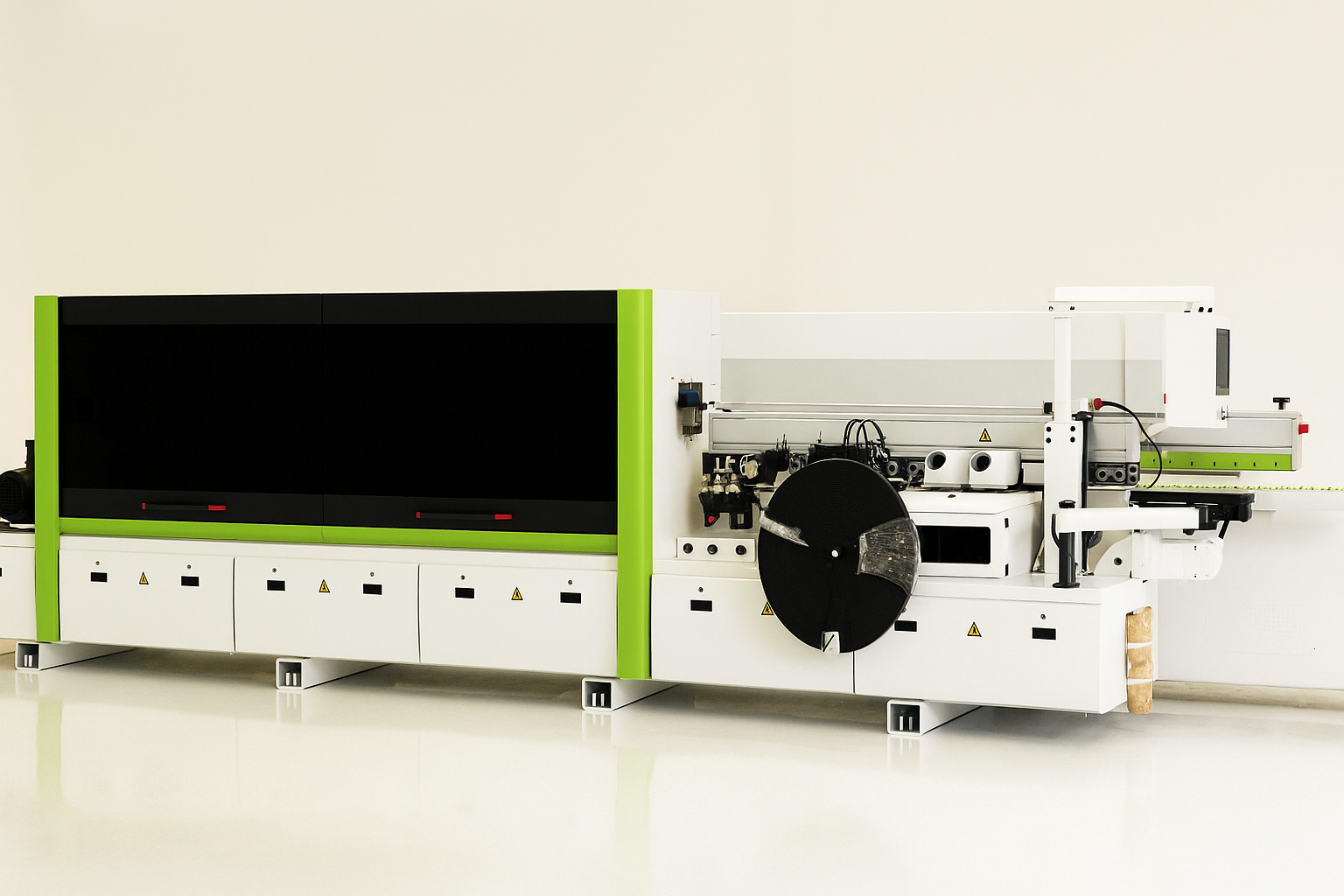

NEWTONS AUTO EDGE BANDING MACHINE with pre milling corner rounding. edge Banding tape thickness 0.4-3 mm Banding tape width 12-65 mm Work piece thickness 10-60 mm Work piece length >=100 mm Work piece width >=50 mm Heating power 1.8 KW Feeding motor power 3.7 KW Pre-milling motor power 2.2 KW x 2 Glue spreading power 0.75 KW End trimming power 0.5 KW x 2 Rough trimming motor power 0.75 KW x 2 Fine trimming power 0.75 KW x 2 Corner rounding motor power 0.5 KW x 2 Polishing motor power 0.37 KW x 2 Feeding speed 10/16/23 m/min Air pressure 0.8 Mpa Overall dimension 6700x850x1520 mm Packing size 6730x880x1580 mm N.W. / G.W. 2800 KGS / 2950 KGS
