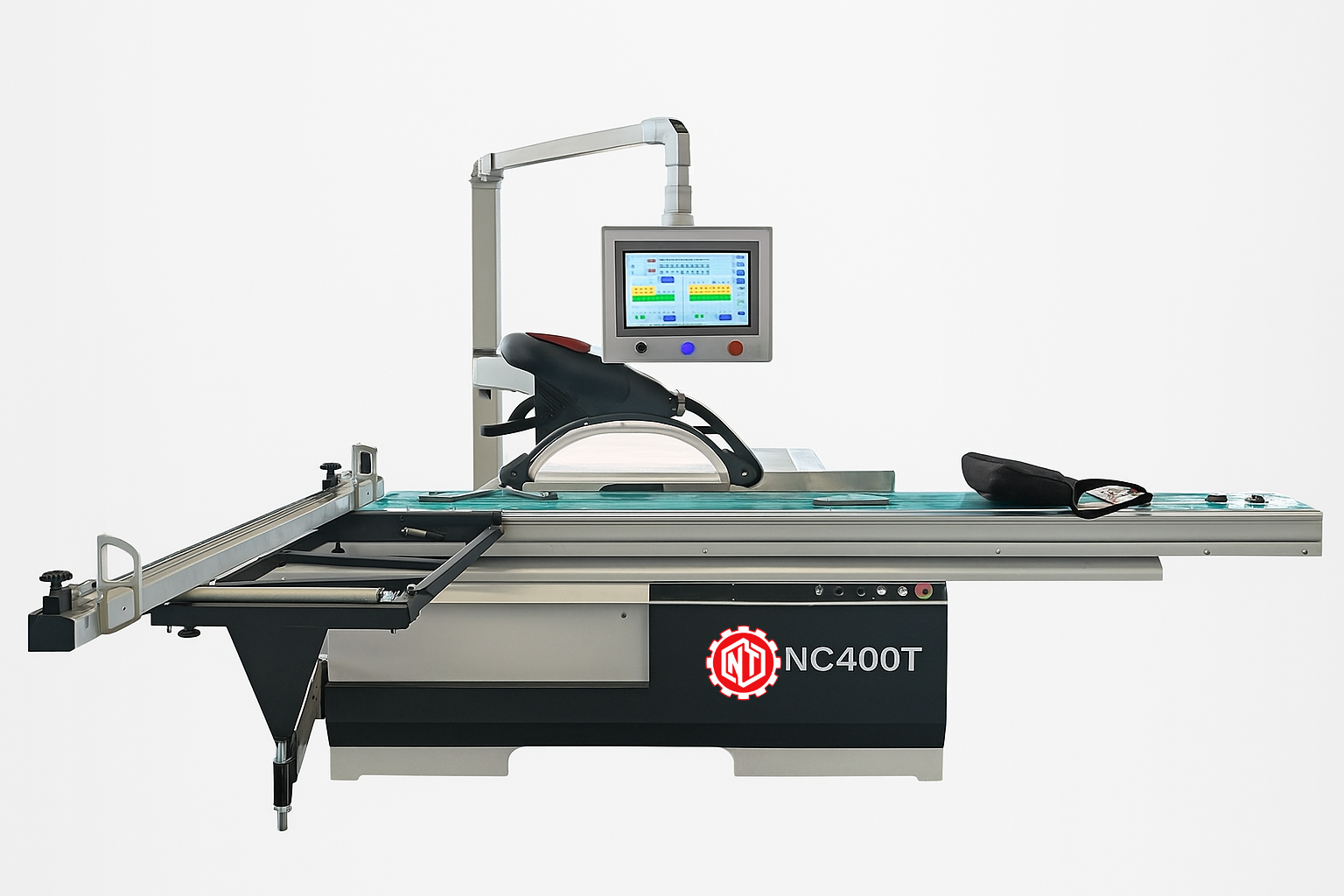

- NAWTON NT400T is Numerically controlled panel saw with automatic RIP fence with servo motor and digital read out with 120 boards cutting capacity Per day with 7.5 HP main motor & 1.5HP scoring motor with 6 years of warrenty. auto up down of the both the blades.
- Height of saw blade can be adjusted electrically.
- Main saw blade rotating speed up to 5200rmp and max. cutting length 3100mm.
- Crosswise guiding board can move automatically by controlling on touch screen, easy and precise.
- Strong machine body for great stability and longer service life.
- Height of saw blade can be adjusted electrically just by one button.
- Main saw and scoring saw can tilt within 0-45°by using hand wheel.
Size/Dimension 3200*360 mm Cutting Width 3000 mm Speed Of Scoring Saw Spindle 9000 RPM Usage/Application Cutting Job Material Wood Cutting Capacity 120 Boards/Day Blade Diameter 350mm Voltage 380 V Model Name/Number NEWTON NT 400T Brand NANXING MACHINERY CO LTD Dimension 3400*3400*1680 Max Cutting Height 125MM Protection Class HIGH CLASS Max Thickness Of Cut 125 MM Power 12HP Weight 1100 KG Max Saw Blade Diameter 350MM Insulation Class CLASS1 Frequency 50Hz Operating Software DELTA Cross Cut Fence Read Out DIGITAL Speed 5200 rpm Table Height Form Floor ADJUSTBLE Phase 3 Phase Servomotor YES Capacity 120 BOARDS PER DAY Application CUTTING Motor Power 7.5 HP Scoring Motor 1.5 HP
