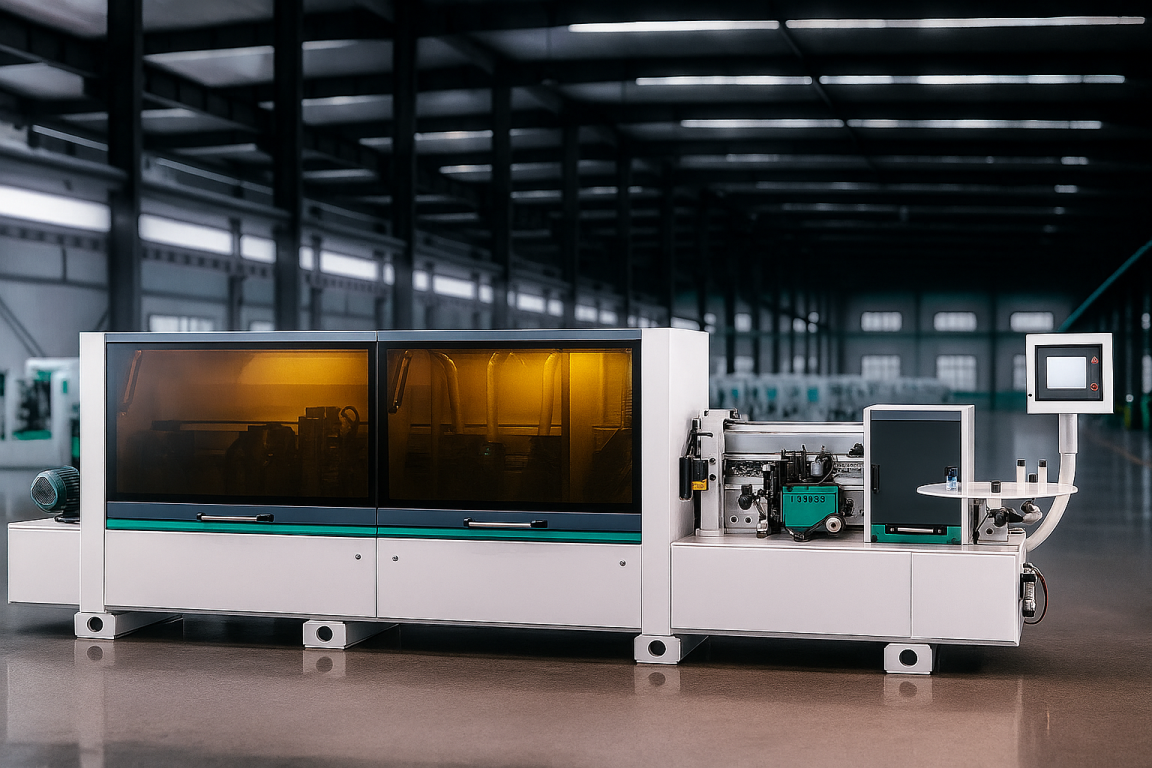

NT-668J , Edge Bander
- NT668J merges numerous functions in one machine, including
- pre-milling,
- feeding,
- gluing,
- snipping,
- end trimming,
- rough trimming
- , fine trimming,
- corner trimming,
- scraping, buffing
- 1 & buffing 2
- , edge banding can be executed on one machine.
- Simplified operation interface for operating machine in shortest time.
- Professional safety protection device is domestic initiative.
- Ideal for almost all kinds of edging material: PVC, ABS, thin plastic and some other materials.
Feeding Speed 15 m/min Brand GINAN GATE MACHINERY PVT LTD Model PE668J EDGE BANDER NANXING Usage/Application EDGE BANDER FOR INTERIOR MANUFACTURING Model Name/Number PE 668J Functions EDGE BANDING MACHINE Power 25 KVA Automation Grade Automatic Voltage 415V Phase 3-Phase Weight 2400 kg Edge belt thickness 3MM Edge Thickness 60 MM Air Pressure 7-8 Bar Glue Pot Capacity 8kg Material MDF,Ply,Particle Board As Well Frequency 50Hz Working Pressure 7- 8 bar Heating Element 4 kW Motor Power 24 HP Extraction Diameter 125 mm
