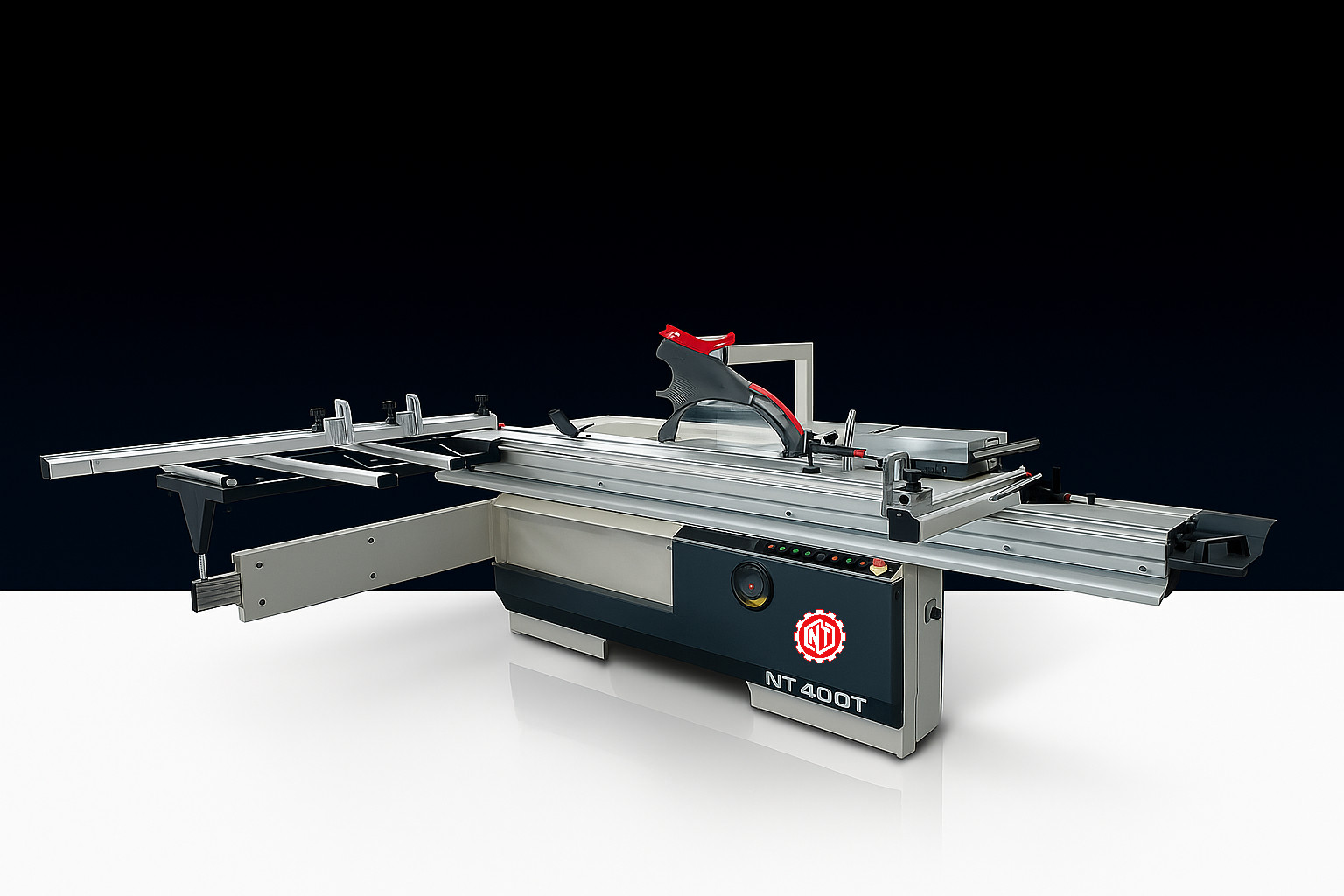

NEWTON PANEL SAW
- Crosswise guiding board can move automatically, easy and precise.
- Strong machine body for great stability and longer service life.
- Height of saw blade can be adjusted electrically just by one button.
- Main saw and scoring saw can tilt within 0-45°by using hand wheel.
- NT400T Panel saw is heavy duty panel saw, which can be used for industry purpose more than 15 hours daily.
- this panel saw can be used for wood cutting like plywood,MDF,HDHMR,Solid wood, hylum sheets.
- this panel saw having 7.5hp main saw and 1.5 hp scoring saw.
- 3200mm cutting leanght 1250mm cutting width.
- electric up and down, up to 400mm diam blade can be used, 1000kg machine weight.
- this machine equal to altendorf WA8 model. this machine star and runs with delta for longer durability and running.
- daily 70 to 100 panel can be cut in 8 to 10 hour shift it depends on operator.
- this panel saw can Run for 10 years without changing or replacing it.
Model NT-400 Main Blade Diameter 300~400x30mm Sliding Table 3200x435mm Main blade speed 4500x5600RPM Scoring blade speed 8000RPM Max depth of cut at 45° 95mm Max depth of cut at 90° 120mm Max. rip capacity 1250mm Main motor output 7.5HP-5.5KW Lifting Electric lifting NW/GW 6200x6600x2000mm Scoring motor output 1000/1100kgs Packing-Main machine 2270x1150x1150mm Packing-Sliding table 3600x450x220mm
